Part
No:MPCS-DT-PIMAO
The CS800 is only available on initial order of the
CS328A or CS320A aquisition units. It provides double the memory of the
standard units. As the minimum frames is 2 you can have up to 4Msamples in
one capture.
CS810 External
sampler clock interface
The CS810 is the factory addition of the facility to
use an external sampler clock signal instead of the standard internal 100
MHz source. A 50 Ohm SMA input fitted to the rear panel accepts sine or
square wave clocks up to 3V p-p in amplitude with a frequency range of
1-100MHz. The acquisition unit automatically determines the input frequency.
The internal/external clock selector switch is software controllable from
the application, and contributes less than 0.2pSec of addititive jitter. The
external clock input enables you to use Cleverscope for synchronus sampling
applications.
CS712 and CS714
100MS/Sec Samplers
These are plug in modules that can either be
purchased instead of the 10 bit sampler on initial order or can be purchased
and installed retrospectively if the need arises.
The option price is lower because we do not supply
the 10 bit sampler. If you want to have both samplers then you will need to
purchase the extra sampler as a module - although we can not think of a good
reason for needing both.
We will shortly have more detailed specifications
available here.

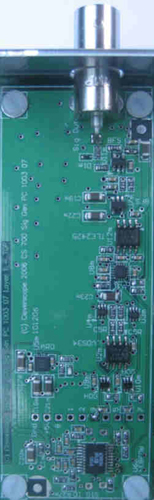

CS700A Signal
Generator
The CS700A Signal Generator is a plug-in module for
the CS328 and CS320 Oscilloscopes. If you order the CS700A at the same time
as a CS328A or CS320A, the module will be factory fitted. Otherwise you can
easily fit the module yourself.
The CS700A Signal generator generates sine, square
and triangle output waveforms. The amplitude may be varied between 0 and 5V
pk-pk, in 10mV steps. The offset maybe varied from –4 to +4V in 10 mV steps.
The generator can be FSK and PSK modulated, and Frequency swept. The sweep
may be synchronized with the Spectrum Analyser to carry out transfer
response measurement. Two of the digital inputs may be allocated to switch
between either of the two frequencies or two phases.
Specifications:
Item |
Value |
Function |
Generate Sine, Square or Triangle output
signals |
Generation Method |
Direct Digital Synthesis |
Output Sampling Rate |
50 MSa/sec |
Frequency Range |
Sine, Square: 0.003 Hz – 10 MHz
Triangle: 0.003Hz – 1 MHz |
Resolution |
0.003Hz (<1KHz) 0.2 Hz (>1kHz) |
Accuracy |
50 ppm in 1 year, 0-40 deg C |
Output Voltage Range |
100mV – 5V p-p including DC offset |
Output Voltage Resolution |
10 mV |
Output Impedance |
50 ohm |
Output Voltage Offset Range |
-4 to +4V |
Output Voltage Offset Resolution |
10 mV |
Frequency Shift Range |
Any two frequencies in range 0.2Hz – 10 MHz |
Phase Shift Range |
Any phase difference between 0 – 360
degrees |
Signal to Noise Ratio |
-60 dBc typical |
Total Harmonic Distortion |
0 – 1 MHz : < -65 dBc
> 1 MHz: < -35 dBc |
Amplitude Flatness |
± 0.2 dB |
Amplitude Accuracy |
± 2% |
Square Wave Rise/Fall Times |
< 12 ns |
Protection |
Short Circuit Protected
± 10V peak overdrive < 1 min |
|
|
