Kvaser OBD II Extension Cable

 		(未稅)台幣定價:0
●產品價格標示為"0"表示未定價，
    要索取報價，請按聯絡我們
Kvaser OBD II Extension Cable
　

簡易規格下載

Kvaser OBD II Extension Cable

CAN, LIN, ISO11898-2/3, USB to CAN, PCI to CAN, PC104 to CAN, UART to CAN, PCI Express to CAN, LIN to CAN, ISA to CAN, J1587, K-Line, SWC, J1850, CAN Development Kit

Part No: MPKV-CAN-Acc-OBDII-Exten-1
                MPKV-CAN-Acc-OBDII-Exten-2
                MPKV-CAN-Acc-OBDII-Exten-3
                MPKV-CAN-Acc-OBDII-Exten-4

Product Versions

MPKV-CAN-Acc-OBDII-Exten-1(00347-7)

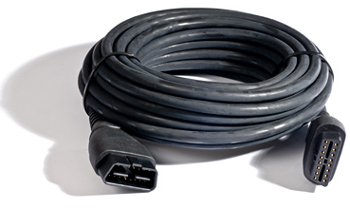

A Kvaser OBDII Extension Cable is an extension cable with a male to female OBD II connector, available in four different lengths.

Description

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. All pins are connected.

General features
  • Molded OBD II (SAE J1962) female connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Made of durable thermoplastic rubber
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor
  • Available in four different cable lengths

Technical Specification
　

Property Value
Length 2500 mm (98.4in.)
Weight 400 g
Material durable thermoplastic rubber

MPKV-CAN-Acc-OBDII-Exten-2(00301-9)

A Kvaser OBDII Extension Cable is an extension cable with a male to female OBD II connector, available in four different lengths.

Description

A Kvaser OBD II Extension Cable is an extension cable with a male to female OBD II connector. The cable is made of durable thermoplastic rubber. All pins are connected.

General features
  • Molded OBD II (SAE J1962) female connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Made of durable thermoplastic rubber
  • Gold plated pins on OBDII connectors for extra reliable contact.
  • Termination is built in with a 120 Ohm terminating resistor
  • Available in four different cable lengths

Technical Specification
　

Property Value
Length 5000 mm (196.9in.)
Weight 600 g
Material durable thermoplastic rubber

MPKV-CAN-Acc-OBDII-Exten-3(00348-4)

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a 9 Pin DSUB connector to a vehicle with an OBD II (J1962) connector.

Description

General features
  • Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Molded 9 pin DSUB female connector with thumbscrews
  • 2500 mm (approx. 8 ft) long cable made of durable thermoplastic rubber
  • Designed for Kvaser^s High-Speed, Low-Speed and Single-Wire CAN interfaces
  • Perfect for Kvaser Memorator, Kvaser Leaf Professional, etc.

Technical Specification
　

Property Value
Length 10000 mm (393.7in.)
Weight 1000 g
Material durable thermoplastic rubber

MPKV-CAN-Acc-OBDII-Exten-4(00349-1)

　

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a 9 Pin DSUB connector to a vehicle with an OBD II (J1962) connector.

Description

General features
  • Molded OBD II (SAE J1962) male connector, for Type A (12 Volt) as well as Type B (24 Volt).
  • Molded 9 pin DSUB female connector with thumbscrews
  • 2500 mm (approx. 8 ft) long cable made of durable thermoplastic rubber
  • Designed for Kvaser^s High-Speed, Low-Speed and Single-Wire CAN interfaces
  • Perfect for Kvaser Memorator, Kvaser Leaf Professional, etc.

Technical Specification
　

Property Value
Length 15000 mm (590.6in.)
Weight 1400 g
Material durable thermoplastic rubber
