PCAN-USB


簡易規格下載

PCAN-USB

Part No: MPPK-CAN-U2C-PCAN-USB
Part No: MPPK-CAN-U2C-PCAN-USB/ISO
(opto-decoupled)

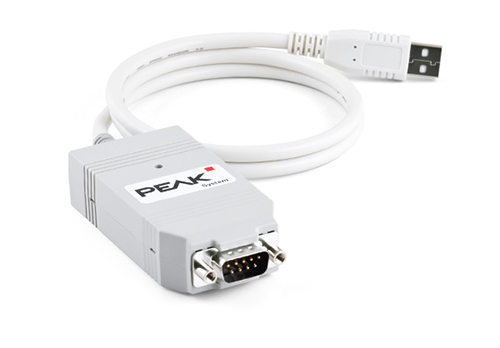

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.

The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Specifications

  • Adapter for the USB connection
    (USB 1.1, compatible with USB 2.0 and USB 3.0)
  • Voltage supply via USB
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Time stamp resolution approx. 42 µs
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)

Optionally available:

  • Galvanic isolation on the CAN connection up to 500 V
Pin assignment D-Sub Pin Pin assignment
1 Not connected / optional +5 V
2 CAN-L
3 GND
4 Not connected
5 Not connected
6 GND
7 CAN-H
8 Not connected
9 Not connected / optional +5 V

Scope of supply

  • PCAN-USB in plastic casing
  • Device drivers for Windows® 8.1, 7, Vista, and Linux (32/64-bit)
  • Device driver for Windows® CE 6.x (x86 and ARMv4 processor support)
  • PCAN-View CAN monitor for Windows® Details ...
  • PCAN-Basic programming interface consisting of an interface DLL, examples, and header files for all common programming languages Details ...
  • Manual in PDF format

Downloads

Problems while downloading the files? Use the right mouse button and save as ...

New Device Driver 3.x Important Information

PCAN-USB package contains device drivers for Windows® 7/Vista/XP (32/64-bit), the PCAN-Basic API, the PCAN-Light API, the CAN monitor PCAN-View, and documentation (German and English)
PCAN-USB manual in PDF format (German)
PCAN-USB manual in PDF format (English)

PCAN-Linux device driver for PEAK CAN interfaces from Kernel 2.4 and higher

MPPK-CAN-U2C-PCAN-USB (002021)
MPPK-CAN-U2C-PCAN-USB/ISO (002022)
